What is the Most Narrow Stair lift?
The narrow or steep staircases found in many UK homes, particularly older terraced or semi-detected properties, can make installing a stair lift seem challenging or even impossible.
The good news? Stairlifts have changed over time. These days, a number of versions are made especially for confined areas, providing useful and safe solutions even on stairs as short as 610 mm (24 inches).
We’ll compare the narrowest stairlifts in the UK, point out their special qualities, and assist you in choosing the one that best suits your requirements.
Table of Contents

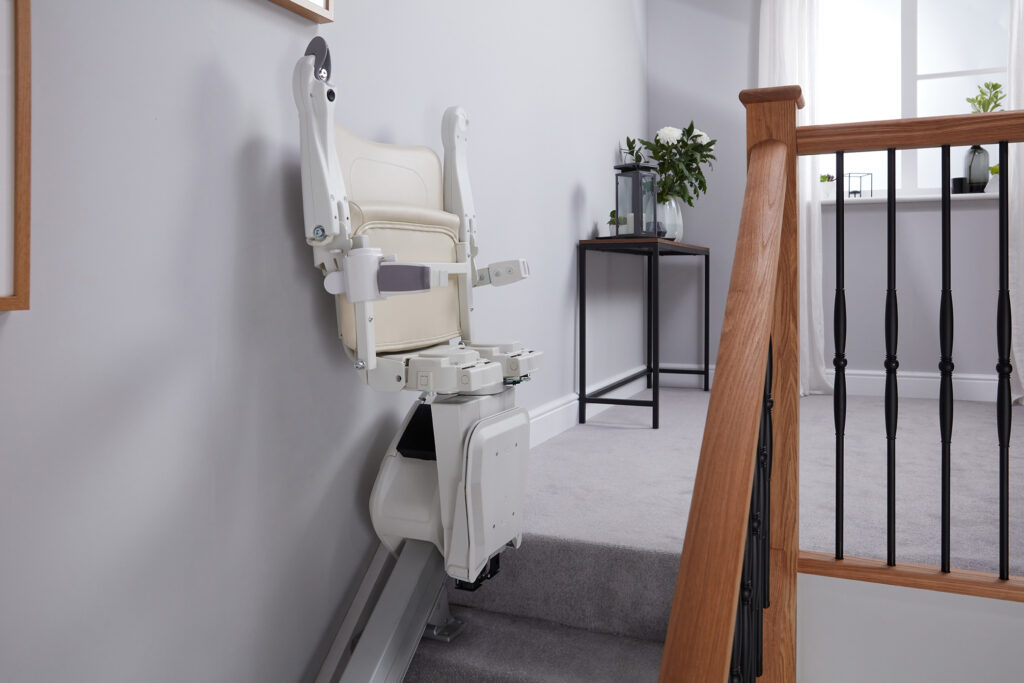

Handicare 1100: The Best Compact & Narrow Stair Lift
When it comes to the most narrow stair lift that we would recommend, we would have to say the Handicare 1100. This lift is small but mighty, being able to support up to 140kg (22 stone) and taking up very little space overall.
| Stair Lift Model | Stair Type | Min Stair Width | Folded Width | Key Feature |
| Platinum Ultimate | Curved | 610 mm (24″) | 375 mm | Forward-facing ride, first-step start |
| Flow X | Straight/Curved | 610 mm (24″) | 340-370 mm | Auto-swivel seat for tight corners |
| Handicare 1100 | Straight | 645 mm (25.4″) | 295 mm | Slimline rail; friction drive (no teeth) |
Width Requirements
The minimum width required for the Handicare 1100 is 28″ (71cm) from one side of the staircase to the other. This allows for the stair lift and the user to be able to fit safely & allow for the lift to ride up & down the rail unobstructed.
The Unique Narrow Slide Track
The Handicare 1100 is one of the only lifts that uses a friction-based system to travel up and down the rail attached to the staircase. Its slim, narrow stair lift profile is very helpful when you are looking at getting a stair lift installed into a narrower area.
Platinum Ultimate Stairlift
One of the most advanced and one of the most narrow stair lifts for curved staircases is the Platinum Ultimate. Made in the UK, it fits staircases as narrow as 610 mm (24 inches) and provides an exceptionally tight fit. The forward-facing travel option on the Ultimate is unique because it offers a more pleasant and natural ride, which is especially advantageous for users who have balance issues, joint discomfort, or vertigo.
There is no need for a hinged rail or impediment in the corridor because the single rail system hugs the wall snugly and can start on the first step. It is a sturdy, adaptable solution for homes with intricate stair layouts and limited space, with a weight capability of up to 120kg as standard or 160kg with the heavy-duty upgrade.
Flow X Stairlift
Many people consider the Flow X, a high-end curved stairlift from Access BDD, a division of the Tyssenkrupp group, to be among the most space-efficient types available. Because of its unique automated swivel seat, which turns the user throughout the trip to negotiate corners and landings with little clearance, it may be put on staircases as small as 610mm. Advanced 3D rail design is used to custom-fit the Flow X, guaranteeing a snug installation that fits your staircase. It also has a smooth, whisper-quiet ride, integrated armrest controls, and a streamlined design with high-quality upholstery. The Flow X offers both style and engineering accuracy, making it perfect for contemporary homes or narrow staircases.

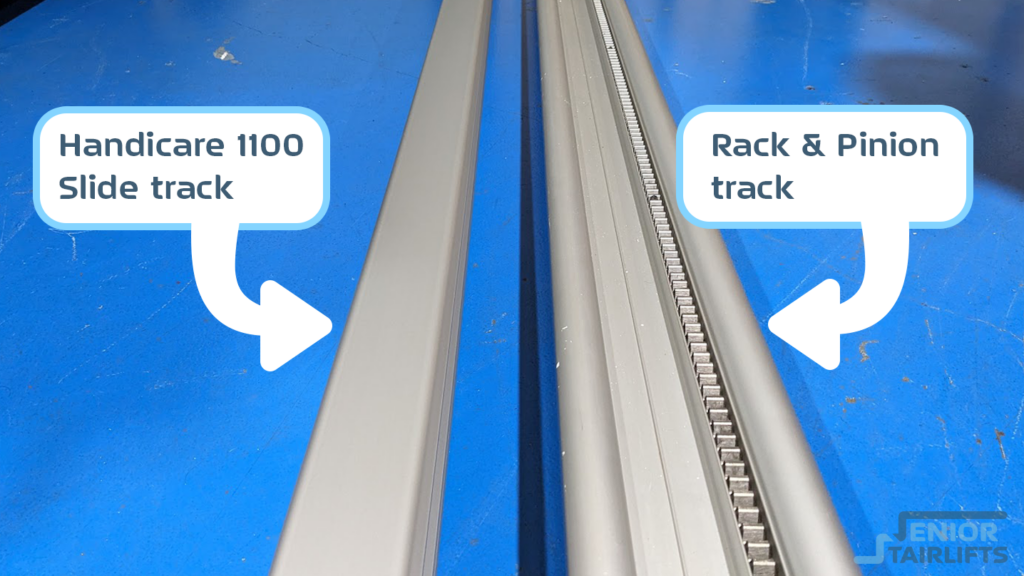

Slide Track VS Rack & Pinion Track
Slide Track

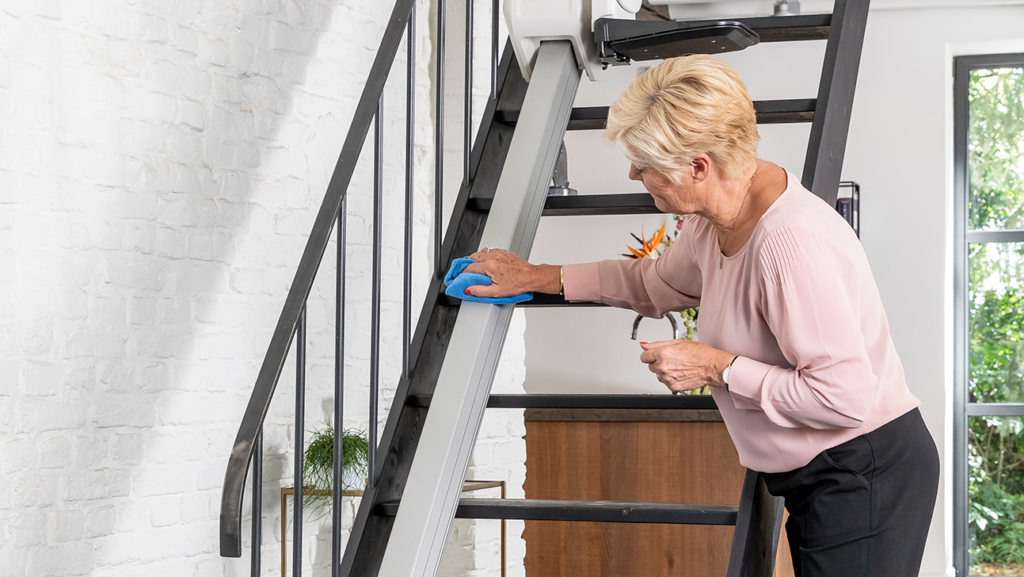

The slide track is a slim & light rail that uses a bespoke specialist system that allows for the rail to be installed tightly against the wall, contributing to the narrow stair lift installed onto it to take up as little space as possible. There are no teeth on the rail itself, which allows for cleaning to be done easily & by the user.
Rack & Pinion Track
Rack & pinion drive rails are the most common type of rail currently used across all stair lifts in the UK. Regular lubrication of the teeth is required to keep the rail running smoothly, but with the larger size and the need for regular maintenance, they are a very sturdy rail, being able to carry more weight than a slide track.
The Right Stair Lift for You
It is paramount that home adaptations fit your requirements that are currently not being met. A stair lift is a functional piece of equipment that solves the problem of getting up the stairs safely, allowing for the access of the entirety of the home safely & efficiently.
Personal needs
The personal needs of the user are paramount when it comes to finding a solution. If they have certain needs, like they are not able to sit down, a standing stair lift would be a preferable option, or if they are wheelchair bound & do not want to or are not able to transition to a new seat, a wheelchair lift would be a better choice.
Professional Installation & Aftermarket Support
Going with a professional stair lift installation company which offers a warranty & aftercare sets you up for security & peace of mind when it comes to maintenance. Sometimes components within a stair lift break or go wrong. When that happens, you want a reliable company to be able to come out and repair your lift properly.
Narrow stair lifts, if installed correctly, have a lifespan of between 5-10 years. But with proper care and regular professional maintenance, they may be able to keep going further beyond that lifetime.
Conclusion
When space is limited, choosing the right narrow stair lift isn’t just about comfort; it’s about safety, mobility, and maintaining independence in your home. Thanks to advancements in the design, even the narrowest staircases can now accommodate reliable and stylish stairlift solutions. Whether you need a straight stairlift like the Handicare 1100 or a bespoke curved option such as the Platinum Ultimate or Flow X, there’s a model to suit virtually every staircase width and layout.
It’s always wise to consult a stairlift specialist if you’re not sure which narrow stair lift is appropriate for your needs or your area. You may find the ideal fit with complete peace of mind at Senior Stairlifts since we provide professional guidance, free home assessments, and complete installation support. No matter how small your steps are, let us assist you in regaining complete access to your house.
